12V 10A (120W) desktop power adapter with universal 100-240VAC input. High PFC, Level VI efficiency, no-load <0.21W. 94V-0 flame-retardant plastic case. UL cUL CE FCC UKCA KC PSE CCC SAA certified. OVP/OCP/SCP protection. IEC C6/C8/C14 options. OEM/ODM ready. 3-year warranty.
Need help choosing a model? Send your application requirements to our team for a recommended solution.

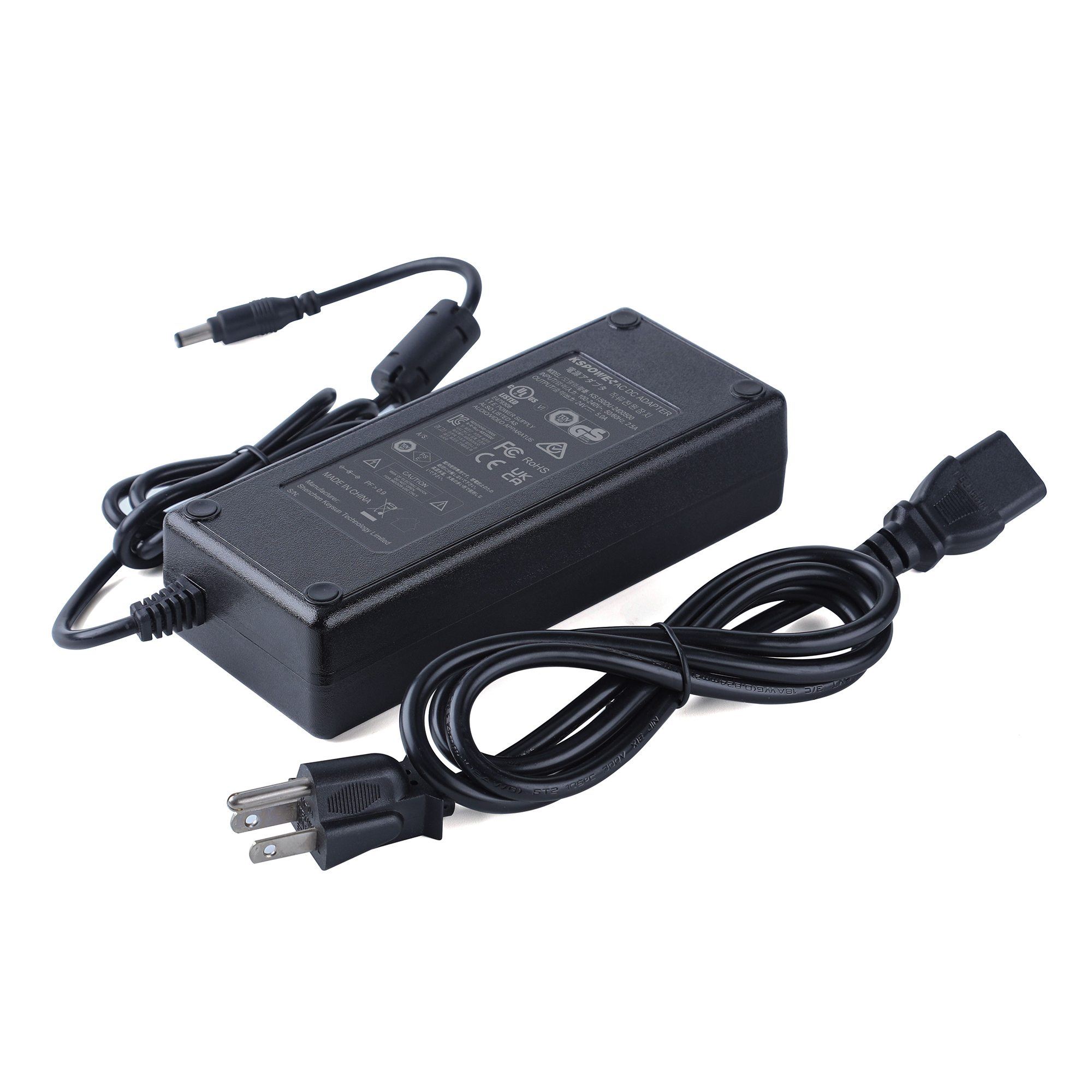

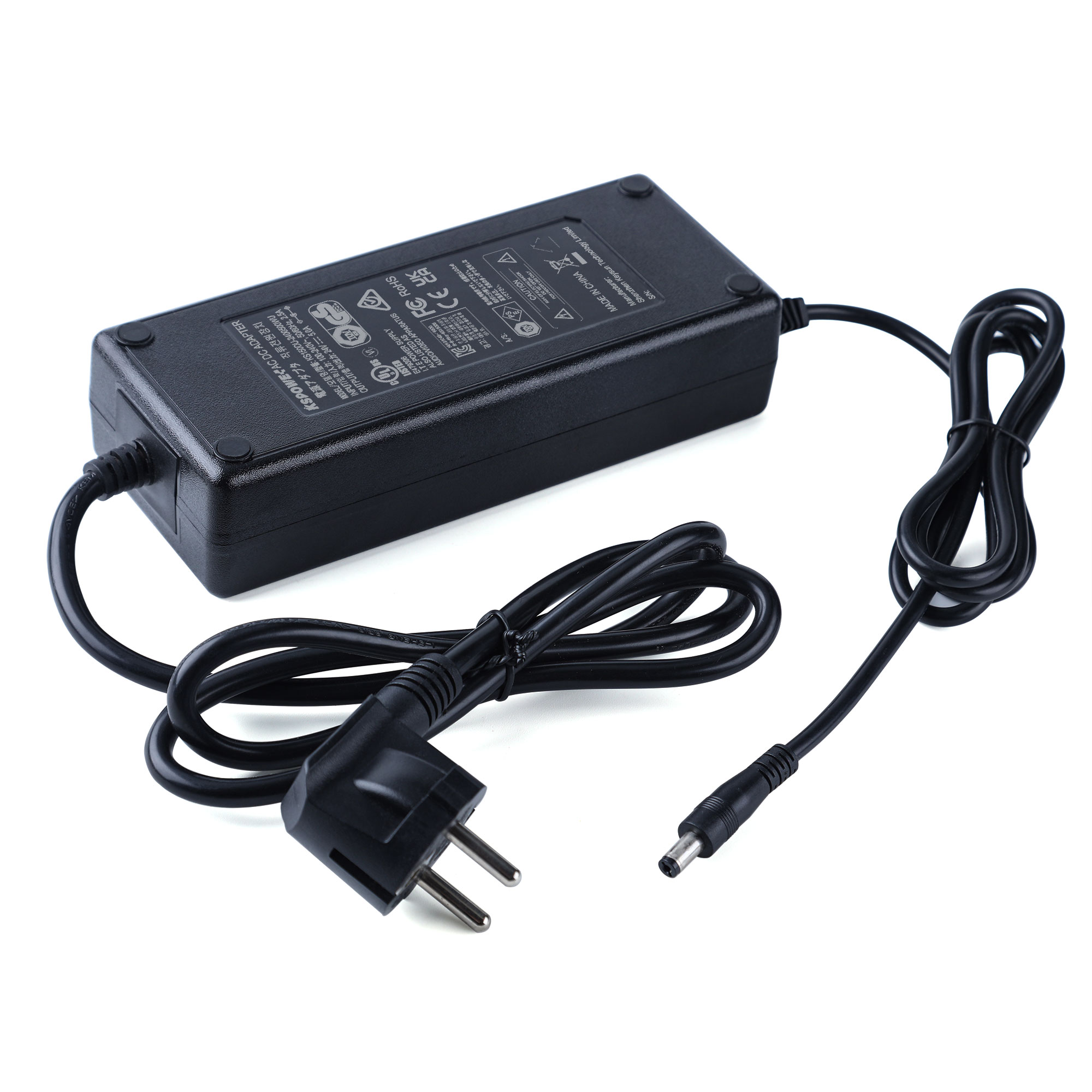

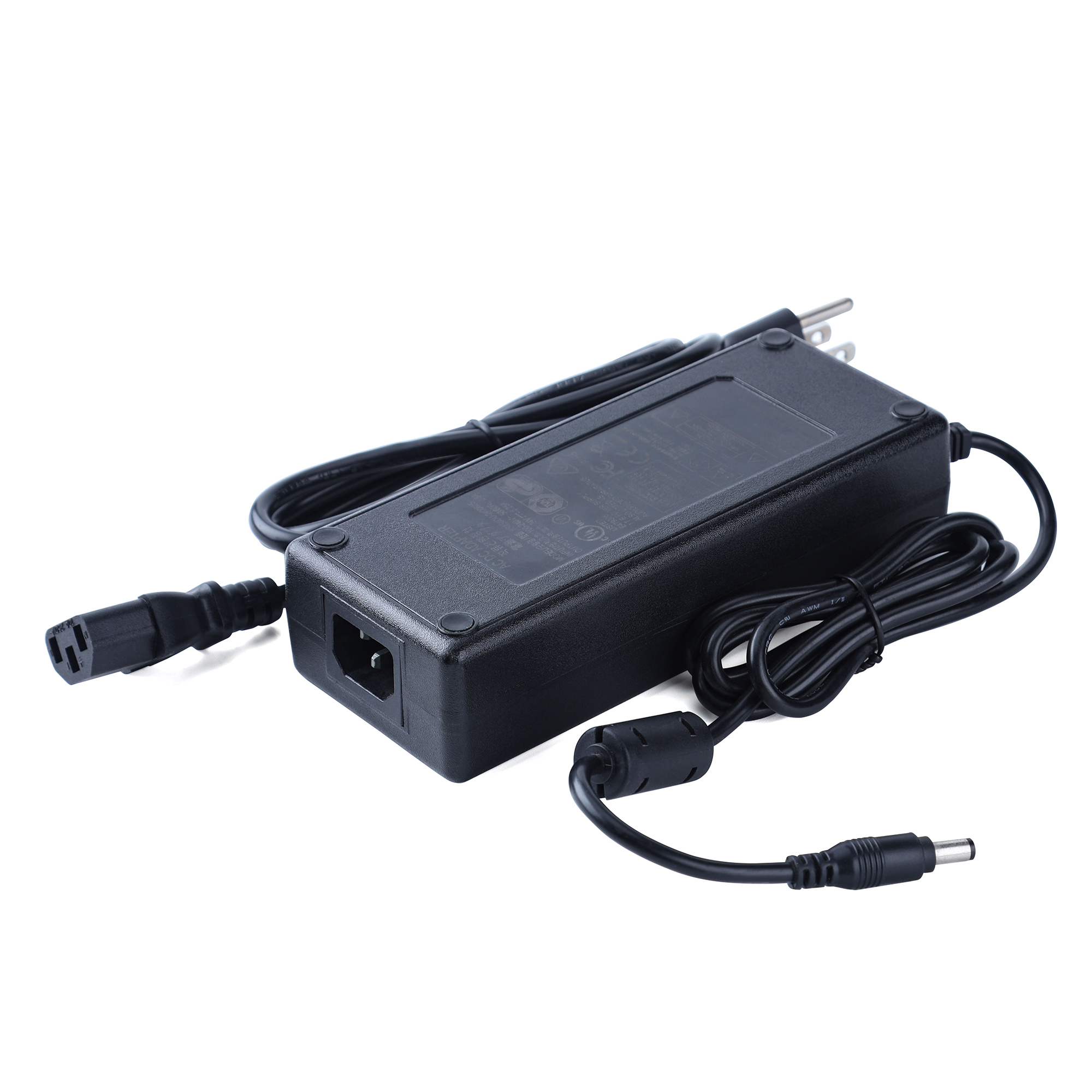

The 12V 10A Desktop Power Adapter delivers a stable 120W DC output (12V / 10A) engineered for industrial automation, commercial electronics, 3D printers, LED lighting systems, CCTV equipment, massage devices, and consumer electronics that demand clean, regulated high-current power. It accepts universal input of 100-240VAC 50/60Hz, enabling worldwide deployment without voltage selection switches.
Built in a fully enclosed 94V-0 flame-retardant plastic case with natural convection cooling (no fan), this desktop adapter operates silently and reliably in office, industrial and home environments. The high PFC design and Level VI energy efficiency ensure low standby losses (no-load <0.21W) and reduced operating cost. Certifications spanning UL, cUL, CE, FCC, UKCA, KC, KCC, PSE, CCC, SAA, RCM, GS and RoHS smooth market entry across North America, Europe, the UK, Korea, Japan, Australia and China.
Technical Specifications
| Item | Specification |
| Model | KS150DU-1201000 |
| Input Voltage | 100-240VAC (universal) |
| Input Frequency | 50/60Hz |
| Output Voltage | 12V DC |
| Output Current | 10A |
| Output Power | 120W |
| Efficiency | Up to 85% (Level VI) |
| No-Load Power | <0.21W |
| Power Factor | High PFC |
| Protection | OVP / OCP / SCP / LPS (Limited Power Source) |
| Ripple/Noise | Low ripple design |
| Operating Temperature | -10 C to +40 C |
| Storage Temperature | -20 C to +85 C |
| Housing | 94V-0 flame-retardant plastic case (fully enclosed) |
| Cooling | Natural convection (no fan) |
| Dimensions | 171 x 71 x 42 mm (6.73 x 2.80 x 1.65 in) |
| DC Connector | 5.5×2.1mm male (or custom) |
| DC Cord | 1.2m standard (or custom) |
| AC Plugs | US / EU / UK / AU / KR / CN (optional) |
| LED Indicator | Power on indicator |
| Safety Certifications | UL / cUL / CE / FCC / UKCA / KC / KCC / PSE / CCC / SAA / RCM / GS / RoHS |
| Warranty | 3 Years |
AC Input Connector Options
| IEC Type | Protection Class | Grounding | Best For |
| IEC320-C8 | Class II (double insulated) | No earth pin | Lightweight designs, portable equipment, consumer electronics |
| IEC320-C6 (cloverleaf) | Class I (with earth) | Earth pin | Industrial equipment, metal enclosures, equipment needing ground |
| IEC320-C14 | Class I (with earth) | Earth pin | Higher power systems, rackmount, permanent installations |
INFO Select IEC type based on your equipment’s protection class and grounding requirements. C8 = Class II no ground; C6/C14 = Class I with ground.
Applications
| Application | Typical Devices | Power Need | Why This Adapter |
| 3D Printers | FDM printers, resin printers | 12V / up to 120W | Stable regulated output, high current for heated bed + motors |
| LED Lighting | LED strips, LED displays, signage | 12V / 60-120W | Clean DC, no flicker, continuous duty |
| CCTV & Security | DVR/NVR, IP cameras, monitors | 12V / 60-120W | Reliable 24/7 operation, OVP/OCP protection |
| Industrial Automation | Small motors, controllers, sensors | 12V / up to 120W | High PFC, stable output, industrial-grade components |
| Massage Equipment | Massage chairs, therapy devices | 12V / 60-120W | High current, natural cooling (no fan noise) |
| Consumer Electronics | LCD monitors, set-top boxes, routers | 12V / 60-120W | Level VI efficiency, low standby loss |
| Telecom & Networking | Modems, switches, communication modules | 12V / up to 120W | Clean power, global certifications |
| DIY & Hobby | Audio amplifiers, hobby projects, testing | 12V / 10A | Cost-effective, readily available DC connector |
Global Safety Certifications
| Certification | Market | Coverage |
| UL / cUL | North America (USA / Canada) | Safety certification for ITE and electronic equipment |
| FCC | USA | Electromagnetic compatibility (EMC) |
| CE | European Economic Area | LVD + EMC directives |
| UKCA | United Kingdom | UK market access post-Brexit |
| GS | Germany | Voluntary safety mark, high market confidence |
| KC / KCC | South Korea | Safety + EMC approval |
| PSE | Japan | Electrical Appliance and Material Safety Law |
| SAA / RCM | Australia / New Zealand | Electrical safety approval |
| CCC | China | China Compulsory Certification |
| RoHS | Global | Restriction of hazardous substances |
OEM / ODM Customization
