Compact 100W 12V 24V 36V 48V LED Power Supply

L / LP / LT / LO Series —  Four Function Versions Overview

The L Series Compact LED Driver platform covers every constant voltage LED power supply requirement in a single compact slim aluminum housing — with four distinct function versions sharing the same IP65 enclosure dimensions, wiring compartment design, certifications and 5-year warranty.

All four versions share the same compact slim aluminum IP65 case, IP65 wiring compartments with knock-outs, and certifications (UL/cUL/CE/FCC/Class 2/Class P) — enabling flexible inventory management with one mechanical platform for all function types.

Four Output Voltage Options

Each of the four function versions (L/LP/LT/LO) is available in all four output voltage options — ensuring the right voltage for every LED installation requirement.

Class 2 benefit: 24V, 36V and 48V models are UL Class 2 certified (UL 1310) — NEC Article 725 compliant, no licensed electrician required for output wiring. 12V model is rated 100W without Class 2 certification — suitable for applications where Class 2 is not required.

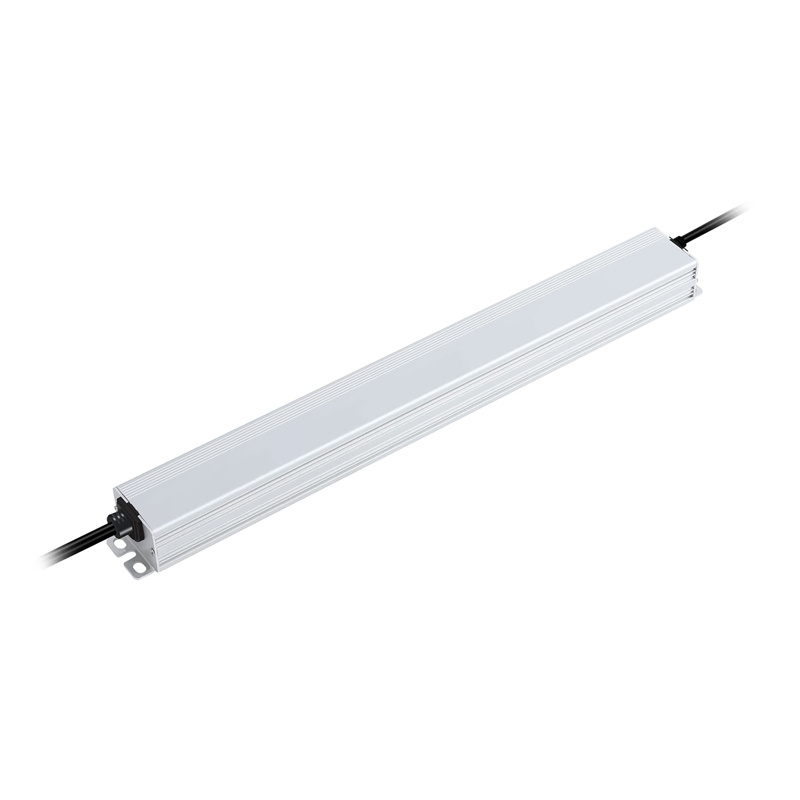

L Series —  Non-Dimmable Constant Voltage

The L Series non-dimmable compact LED driver is the primary product version of this platform — engineered for LED installations that require constant, stable brightness without built-in dimming capability.

This non-dimmable version is the preferred choice when the LED luminaire or fixture uses an external dimming control system such as a PWM controller, DMX decoder, relay-based building automation, or automated switching system. The constant voltage output ensures perfectly stable LED brightness regardless of load variations.

• Constant voltage output: perfectly stable brightness, no flicker, no dimming artifacts — ideal for precision lighting applications
• External dimming compatibility: works with PWM controllers, DMX512 decoders, DALI gateways, relay switching and building automation systems
• Class 2 certified (24V/36V/48V): NEC Article 725 compliant output wiring, no licensed electrician required
• IP65 slim aluminum case: fits standard 2-inch depth junction boxes, shallow ceiling plenums and narrow architectural coves
• >88% efficiency + low operating temperature: extends LED lifespan and reduces energy costs

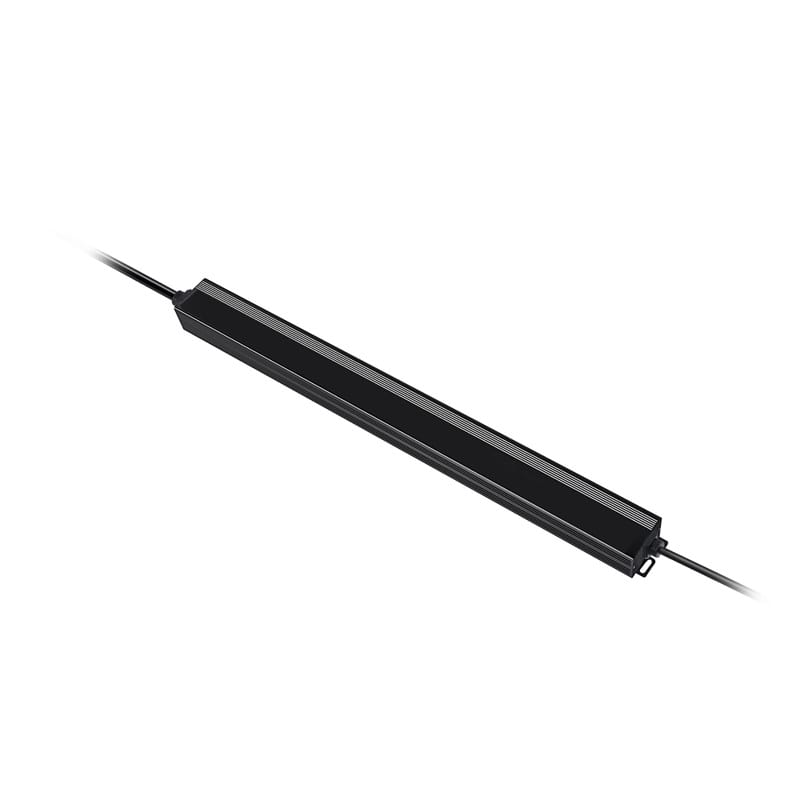

Compact Slim Case Design

The defining feature of the entire L/LP/LT/LO platform is its compact slim aluminum enclosure — engineered to solve the most common installation constraint in modern LED projects: limited space.

• Slim profile aluminum case: fits inside standard 2-inch (50mm) depth electrical junction boxes, shallow ceiling plenums and narrow architectural coves — no external driver enclosure needed
• Separate IP65 wiring compartments: input and output compartments with knock-outs for clean, watertight cable entry — prevents water ingress and simplifies wire routing
• IP65 rated: sealed against dust and water jets — suitable for dry and damp indoor locations and covered outdoor installations
• Lightweight aluminum construction: reduces mounting stress on ceiling tiles and light-fixture housings
• Class P and Type HL certified: compatible with Class P LED modules and hazardous-location luminaires — simplifies luminaire certification

Universal AC Input —  Universal 100-277VAC

All four function versions and all four voltage options accept universal AC input 100–277VAC at 50/60Hz:

• North America (120V / 277V): Full range supported — 277V commonly used for commercial lighting circuits
• Europe / UK (220-240V): Full range supported — covers 220V to 240V range
• Asia incl. Japan (100V / 200V): Full range supported — covers 100V Japanese standard
• Universal (100-277VAC): Full range supported — ideal for multi-market OEM projects

Technical Highlights

• 4 function versions × 4 voltages: L / LP / LT / LO series cover every requirement — non-dimmable, 5-in-1, TRIAC, 4-in-1 — in one compact mechanical platform
• Compact slim aluminum IP65 case: fits standard 2-inch depth junction boxes, shallow ceiling plenums and narrow architectural coves
• 4 voltage options: 12V / 24V / 36V / 48V DC — covers every common low-voltage DC application
• L Series non-dimmable main version: constant voltage output, compatible with external PWM/DMX/BMS controllers
• UL Class 2 certified (24V/36V/48V models): NEC Article 725 compliant, no licensed electrician required for output wiring
• UL Class P and Type HL certified: compatible with Class P LED modules and hazardous-location luminaires
• IP65 rated: dust-tight and protected against water jets — dry and damp indoor and covered outdoor use
• Flicker-free output: smooth ripple-free constant voltage waveform — no visible flicker at any load
• >88% efficiency: high conversion efficiency means lower heat generation, longer LED lifespan and reduced energy costs
• Separate IP65 wiring compartments with knock-outs: clean, watertight installation with no additional enclosures
• Hiccup mode protection: OCP / SCP / OVP with automatic recovery — no manual fuse replacement
• Universal AC input: 100–277VAC 50/60Hz — covers North America, Europe, Asia and Australia without configuration
