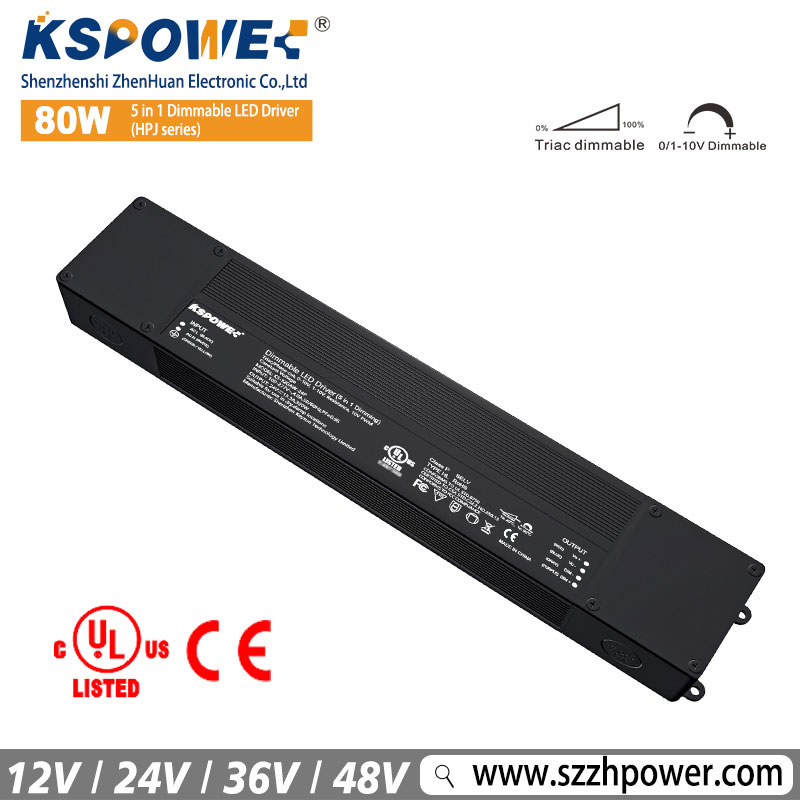

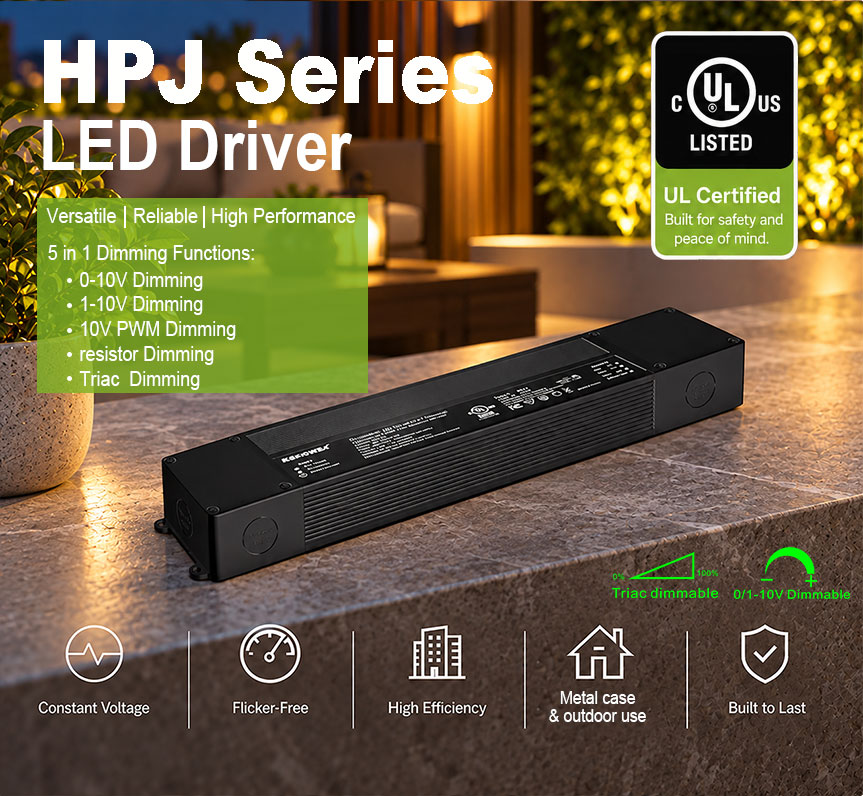

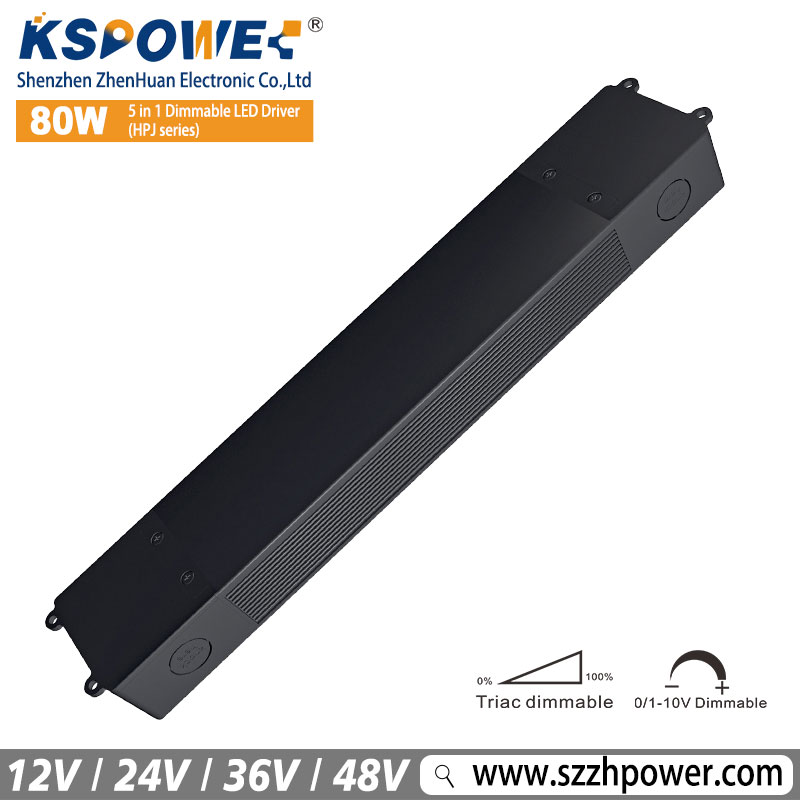

HPJ Series 80W 5 IN 1 Dimmable LED Driver Universal Dimming for Commercial Lighting

Product Description

The 80W 5 IN 1 Dimmable LED Driver from the KSPOWER HPJ Series is engineered for commercial and architectural LED lighting projects that require flexible dimming, reliable installation and long-term performance.

Designed with a 100-277VAC universal input, this universal dimming LED driver provides constant voltage PWM output in 12V, 24V, 36V and 48V, making it suitable for OEM lighting manufacturers, lighting designers and electrical contractors serving North American and European markets.

The HPJ Series combines five dimming methods into one driver:

• TRIAC / Phase-cut
• 0-10V
• 1-10V
• 10V PWM
• Resistance (Potentiometer)

With advanced PWM control technology, brightness can be smoothly adjusted down to 0.1% without visible flicker, providing stable illumination for demanding lighting environments. Professional-grade drivers in this class commonly emphasize broad dimmer compatibility and deep dimming performance.

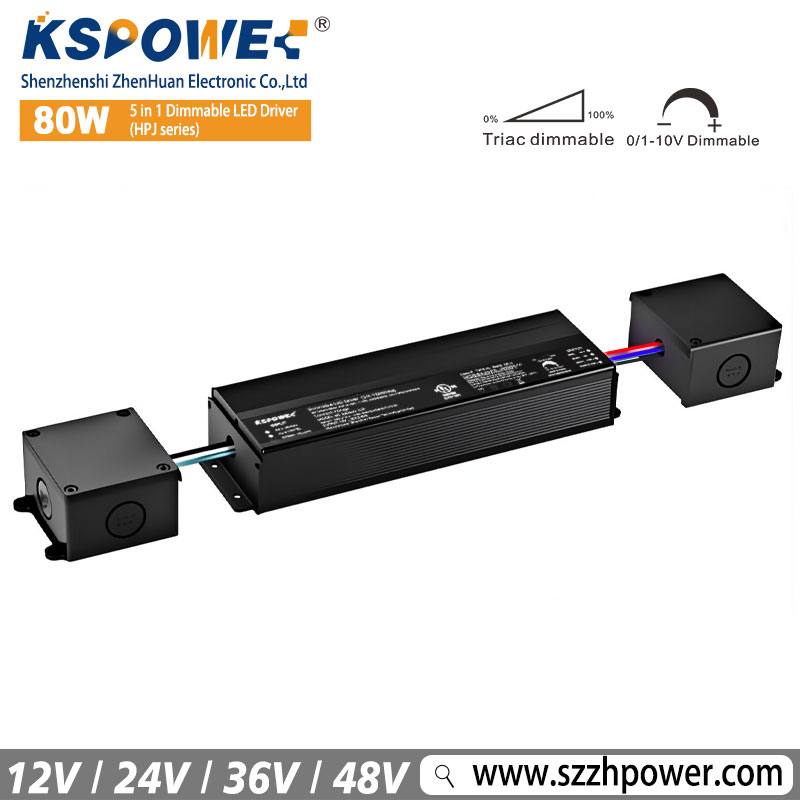

Its removable junction box power design simplifies wiring and maintenance while providing additional installation flexibility. The integrated aluminum enclosure offers excellent thermal performance, and the NEMA 3R rated construction is suitable for indoor and damp-location installations.

The driver is compatible with many internationally recognized dimming systems, including Lutron, Leviton, Legrand and Eaton, helping reduce compatibility issues in commercial projects.

Certified to UL, cUL Class 2 and CE, and designed with high power factor (High PFC) technology, this commercial LED dimming supply delivers energy-efficient operation, stable output and dependable performance backed by a 5-year warranty.

Key Features

• Universal 100–277VAC Input
• 80W Constant Voltage Output
• 12V / 24V / 36V / 48V Available
• 5-IN-1 Universal Dimming
• TRIAC / Phase-cut Compatible
• 0-10V Compatible
• 1-10V Compatible
• 10V PWM Compatible
• Resistance Dimming Compatible
• Smooth Dimming to 0.1%
• PWM Output Technology
• High Power Factor Design
• UL / cUL Class 2 Certified
• CE Approved
• NEMA 3R Rated
• Aluminum Housing
• Removable Junction Box
• Black or Silver Finish
• 5-Year Warranty
• OEM & ODM Customization

Model Specifications

Electrical Specifications

• Input Voltage: 100–277VAC
• Frequency: 50/60Hz
• Constant Voltage PWM Output
• High Power Factor (>0.95 typical design target)

Certifications

• UL
• cUL Class 2
• CE

Protection

• NEMA 3R Rated

Housing

• Aluminum Housing
• Black Finish
• Silver Finish
• Removable Junction Box

Dimension Drawing

The removable junction box provides generous wiring space, allowing faster installation while maintaining excellent heat dissipation and long-term reliability.

Wiring Diagram

Warnings:

• Don’t open or modify the led dimmable power supply.
• Please leave children, kids far away from high voltage power source.
• Please use it under professional electrician’s guides.

Supported dimming interfaces:

• TRIAC / Phase-cut
• 0–10V
• 1–10V
• 10V PWM
• Resistance (Potentiometer)

Compatible with popular dimmer brands:

• Lutron
• Leviton
• Legrand
• Eaton
• Other standard forward-phase, reverse-phase and 0–10V dimmers

Applications

Recommended for:

• LED Strip Lighting
• Linear LED Fixtures
• Architectural Cove Lighting
• Hotel Guest Rooms
• Retail Display Lighting
• Office Buildings
• Luxury Residential Projects
• Restaurants & Cafés
• Museums & Galleries
• Shopping Mall Lighting

Global Compliance + OEM Service

The HPJ Series universal dimming LED driver is designed for professional OEM and ODM lighting manufacturers worldwide.

Customization services include:

• Housing Color
• Private Label Printing
• Customized Junction Box
• AC Input Cable Options
• DC Output Cable Length
• Connector Types
• Product Labels
• Customized Packaging

Quality Assurance + Shipping & Packaging

Each KSPOWER Class 2 lighting transformer undergoes strict quality control before shipment.

Testing includes:

• 100% Aging Test
• Full Load Test
• Hi-Pot Test
• Dimming Performance Verification
• High PF Verification
• Final Functional Inspection

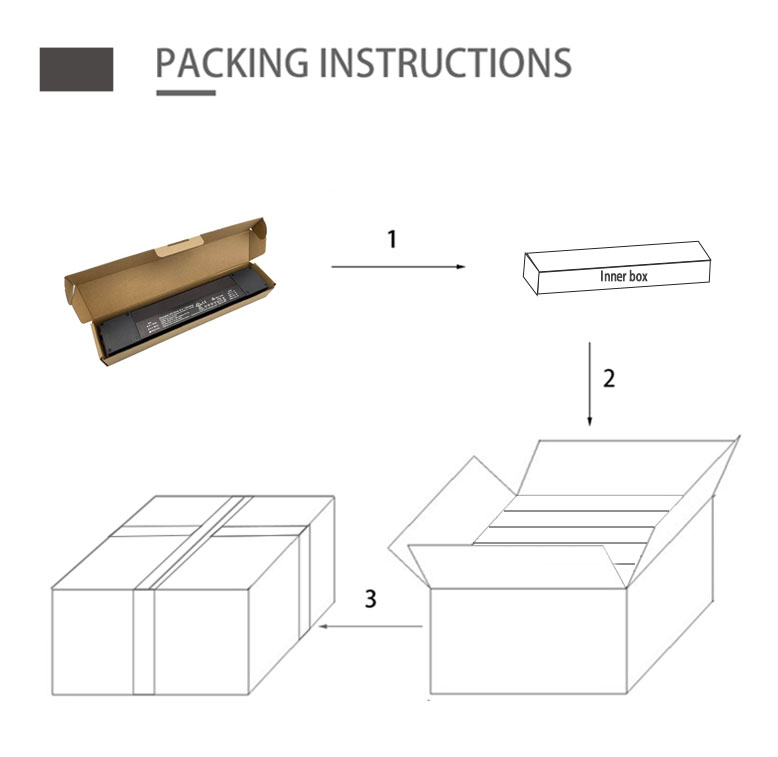

Packaging:

• Individual Inner Box
• Protective Foam
• Export Carton
• OEM Logo Printing
• Customized Packaging Available
