HPJ Series 240W Constant Voltage LED Driver 5-IN-1 Dimmable LED Driver

Product Description

The 240W Constant Voltage LED Driver from KSPOWER HPJ Series is developed for OEM lighting manufacturers, electrical contractors and commercial lighting distributors seeking one universal dimming solution for multiple applications.

As a professional 5 In 1 Dimming Driver, it accepts a wide 100-277VAC input voltage and provides stable PWM constant voltage output in 12V, 24V, 36V and 48V versions. With one driver supporting five popular dimming technologies, inventory complexity is significantly reduced while installation flexibility is greatly improved.

Integrated 5-IN-1 Dimming Modes

• Triac / Forward Phase
• Phase-cut
• MLV
• ELV
• 0-10V
• 1-10V
• 10V PWM
• Resistor (Potentiometer)

The optimized PWM control circuit provides 0.1% ultra-deep dimming, excellent linearity and flicker-free performance throughout the full dimming range.

Designed as a High Power LED Transformer, the driver delivers high efficiency, active PFC and stable voltage regulation, making it suitable for demanding LED strip lighting, architectural lighting and commercial lighting installations.

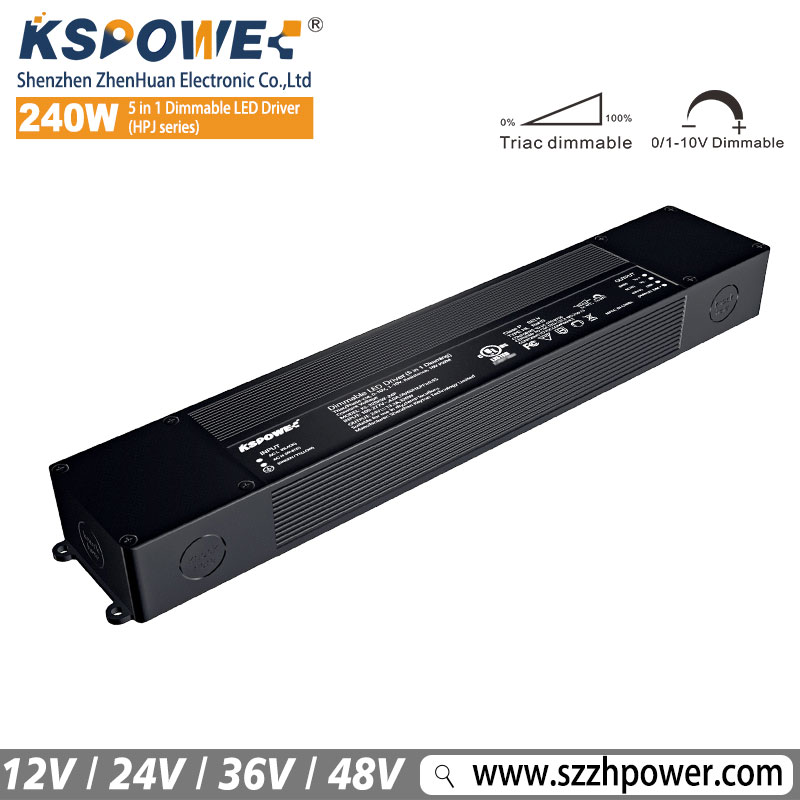

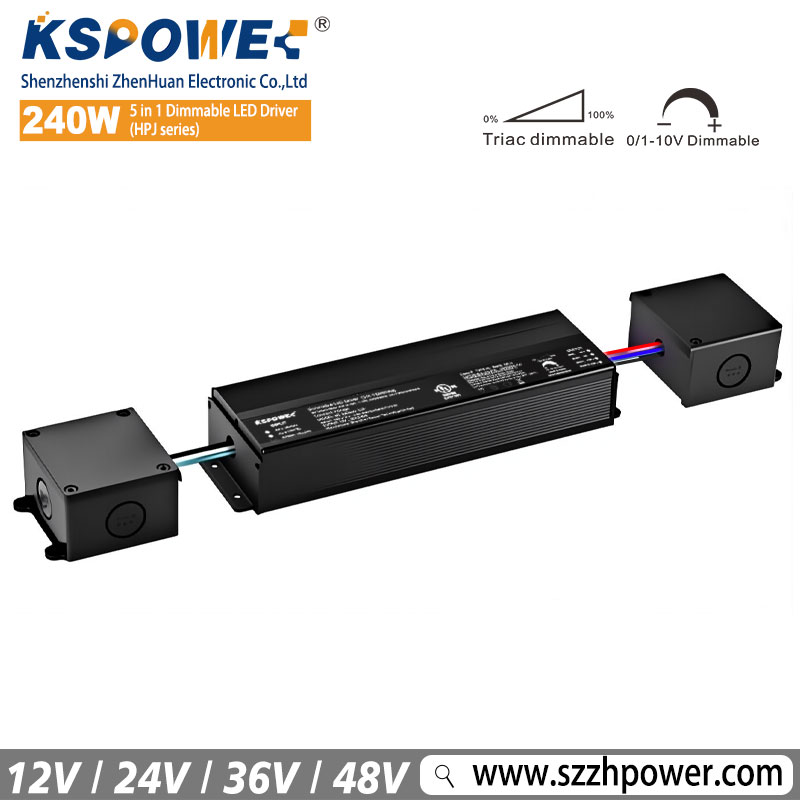

The rugged Aluminum Junction Box Driver features a black extruded aluminum enclosure with a detachable junction box for easier wiring, simplified maintenance and enhanced protection. Its NEMA 3R LED Driver construction is suitable for dry, damp and many outdoor installation environments.

Compatible with many internationally recognized dimmer brands including:

• Lutron
• Leviton
• Legrand
• Eaton
• Hubbell

Comprehensive protection functions include:

• Over Voltage Protection
• Over Current Protection
• Short Circuit Protection
• Over Temperature Protection

Combined with UL/cUL and CE approvals, High PFC design and a 5-year warranty, the HPJ Series offers a dependable solution for long-term commercial LED lighting applications.

Product Features

HPJ Series Advantages

• 100-277VAC Universal Input
• Constant Voltage PWM Output
• 12V / 24V / 36V / 48V Available
• 5-IN-1 Universal Dimming
• Triac / Phase-cut / MLV / ELV Compatible
• 0-10V & 1-10V Compatible
• 10V PWM Compatible
• Resistor Dimming Compatible
• Smooth 0.1% Dimming
• Flicker-Free Performance
• Active High PFC
• UL / cUL / CE Certified
• Black Aluminum Housing
• Detachable Junction Box
• NEMA 3R Rated
• Multiple Safety Protections
• 5-Year Warranty

Model Selection

Input Voltage

100-277VAC

Output Type

PWM Constant Voltage

Power Factor

High PFC

Protection Grade

NEMA 3R

Certification

UL / cUL / CE

Warranty

5 Years

Dimensions

Dimension Drawing

Wiring Diagram

Connection Diagram

AC Input

• L (Live)
• N (Neutral)
• FG (Ground)

DC Output

• V+
• V-

Dimming Control

• Purple (+)
• Gray (-)
• PWM
• Resistor
• TRIAC Input

Warnings:

• Don’t open or modify the led dimmable power supply.
• Please leave children, kids far away from high voltage power source.
• Please use it under professional electrician’s guides.

Applications

Recommended Applications

• Architectural LED Lighting
• Commercial Buildings
• Shopping Mall Lighting
• Hotel Lighting
• Office Lighting
• Restaurant Lighting
• Linear LED Fixtures
• LED Strip Lighting
• Landscape Lighting
• Signage Lighting
• Cove Lighting
• Display Cabinet Lighting

Packaging

Standard Package

• 1 × HPJ LED Driver
• Protective Inner Box
• 15 pcs put in one Export Carton

Suitable for express, air and sea shipment.

Contact KSPOWER

Need OEM or customized wiring?

Our engineering team can provide customized cable length, labels, packaging, logo printing and technical support for your LED lighting projects.
