HPJ Series 200W 5-IN-1 Dimmable LED Driver

Product Description

The 200W 5 In 1 Dimmable LED Driver from KSPOWER HPJ Series combines installation flexibility, advanced dimming compatibility and long-term reliability into one professional lighting solution.

Designed as a Universal Dimming Power Supply, it accepts a wide 100-277VAC input and provides stable constant voltage PWM output with 12V, 24V, 36V and 48V versions available.

Unlike traditional dimmable drivers that support only one protocol, the HPJ Series 200W 5 in 1 dimmable led driver integrates five popular dimming technologies in a single product, allowing lighting manufacturers and contractors to simplify inventory while supporting a wide range of dimming systems.

Supported dimming methods include:

• Triac / Phase-cut
• MLV
• ELV
• 0-10V
• 1-10V
• 10V PWM
• Resistance (Potentiometer)

The optimized PWM output ensures stable brightness, low ripple and excellent dimming performance from 100% down to 0.1%, making it suitable for premium commercial lighting applications.

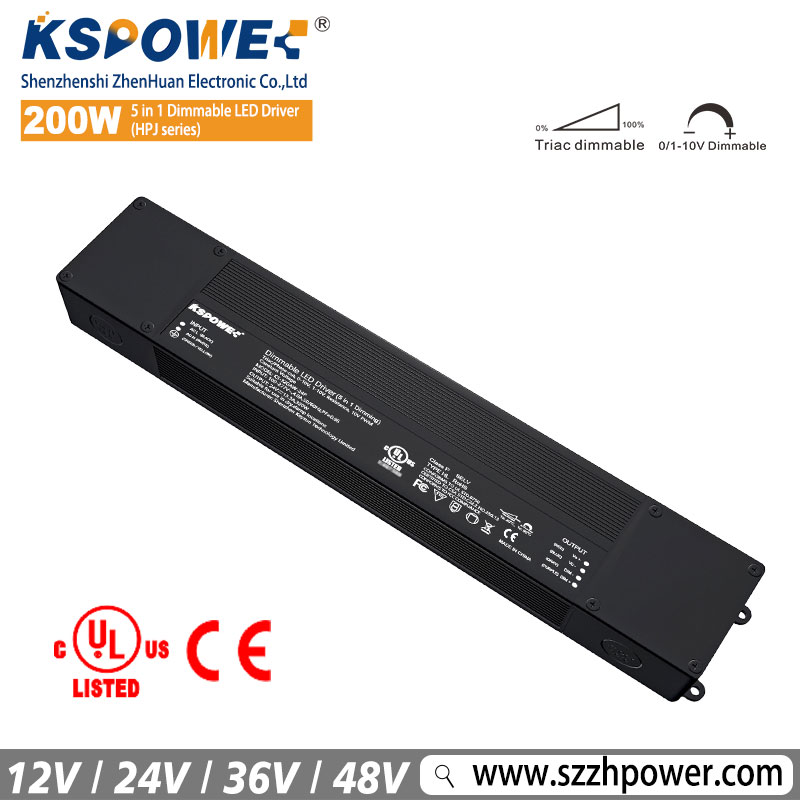

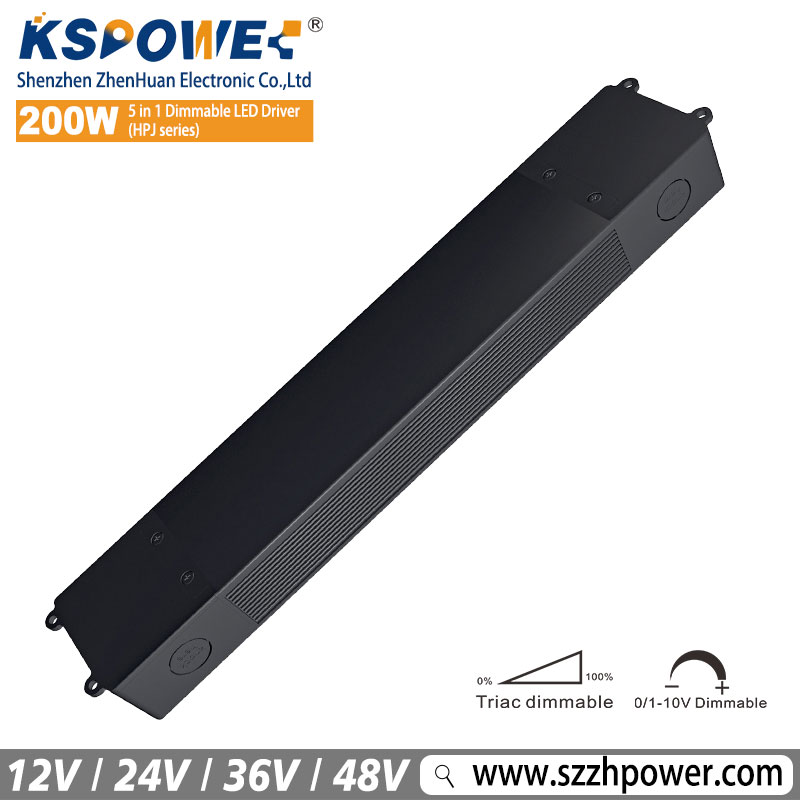

This Junction Box LED Transformer is housed in a durable black aluminum enclosure with a detachable wiring compartment, simplifying field installation and maintenance while meeting NEMA 3R requirements.

Compatible with many popular lighting control systems, including:

• Lutron
• Leviton
• Crestron
• Legrand
• Eaton

The Outdoor PWM LED Driver is ideal for OEM lighting manufacturers, distributors and commercial lighting projects requiring dependable performance, certified safety and long operating life. Its high efficiency, active PFC design and multiple protection functions help reduce maintenance costs while ensuring stable operation in demanding environments. Similar multi-protocol dimming compatibility is a common expectation in North American commercial lighting products.

Product Features

Why Choose HPJ Series?

• Universal 100-277VAC Input
• Constant Voltage PWM Output
• 12V / 24V / 36V / 48V Available
• 5-IN-1 Dimming Technology
• Triac / Phase-cut / MLV / ELV Compatible
• 0-10V & 1-10V Compatible
• 10V PWM Compatible
• Resistance Dimming Compatible
• Smooth Dimming to 0.1%
• Flicker-Free Performance
• High Power Factor
• Active PFC Design
• UL / cUL / CE Certified
• Black Aluminum Housing
• Detachable Junction Box
• NEMA 3R Rated
• Over Voltage Protection
• Over Current Protection
• Short Circuit Protection
• Over Temperature Protection
• 5-Year Warranty

Model Selection

Input Voltage

100-277VAC

Output Mode

Constant Voltage PWM

Power Factor

High PFC

Protection Grade

NEMA 3R

Certification

UL / cUL / CE

Warranty

5 Years

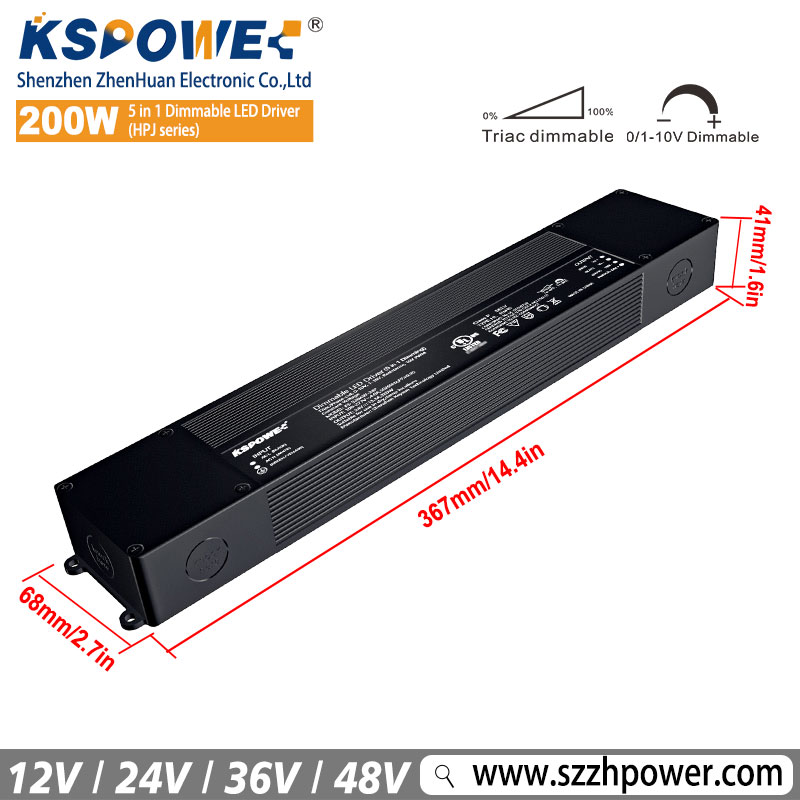

Dimensions

Mechanical Drawing

Wiring Diagram

AC Input

• Line (L)
• Neutral (N)
• Ground (FG)

DC Output

• V+
• V-

Dimming Interface

• Purple (+)
• Gray (-)
• PWM
• Potentiometer
• Triac Input

Warnings:

• Don’t open or modify the led dimmable power supply.
• Please leave children, kids far away from high voltage power source.
• Please use it under professional electrician’s guides.

Applications

Suitable for:

• Architectural LED Lighting
• Commercial Buildings
• Hotels & Resorts
• Retail Stores
• Office Lighting
• Shopping Centers
• Restaurants
• Landscape Lighting
• Cove Lighting
• LED Strip Lighting
• Sign Lighting
• Exhibition Lighting

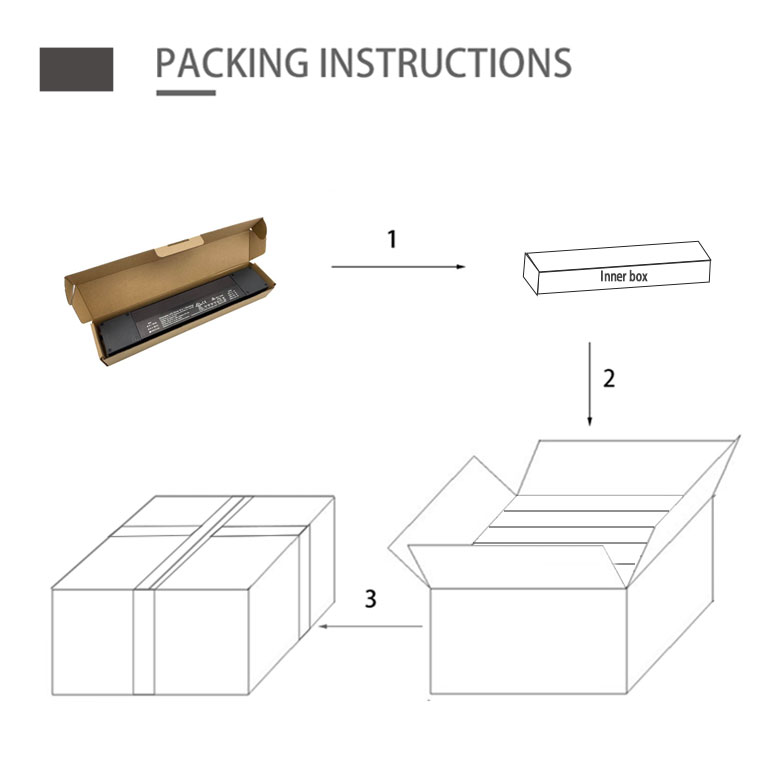

Packaging

Standard Package

• HPJ LED Driver ×1
• Inner Protective Box
• Export Carton

Suitable for sea, air and express transportation.

Contact KSPOWER

Need OEM or ODM service?

Our engineering team can recommend the best output voltage, dimming method and customized wiring solution for your lighting project.
