Universal Industrial Desktop AC DC 150W High PFC Power Supply

The KSPOWER 150W High PFC Power Supply is designed for industrial and commercial applications requiring reliable, energy-efficient AC to DC conversion. Featuring universal 100-240VAC input, active PFC (>0.95), output options from 5V to 36V, and power ratings from 120W to 150W, this desktop power adapter is available with interchangeable IEC AC inlet or integrated AC cable designs. OEM and ODM customization services are available for worldwide markets.

Need help choosing a model? Send your application requirements to our team for a recommended solution.

150W High PFC Desktop Power Supply for Industrial & Commercial Equipment

When powering high-performance electronic devices, efficiency and reliability are just as important as output power. KSPOWER’s 150W High PFC Power Supply is engineered for continuous-duty applications, providing stable DC output with universal AC input for customers across Europe, North America, the UK, Australia, Japan and South Korea.

Designed with Active Power Factor Correction (PFC >0.95), the High Efficiency AC Adapter significantly reduces harmonic distortion while improving energy utilization, making it ideal for modern electrical systems. The power supply supports output voltages from 5VDC to 36VDC, with popular models including 12V, 24V, and 36V.

Customers may choose between two enclosure styles:

Desktop housing with IEC C6, C8 or C14 AC inlet

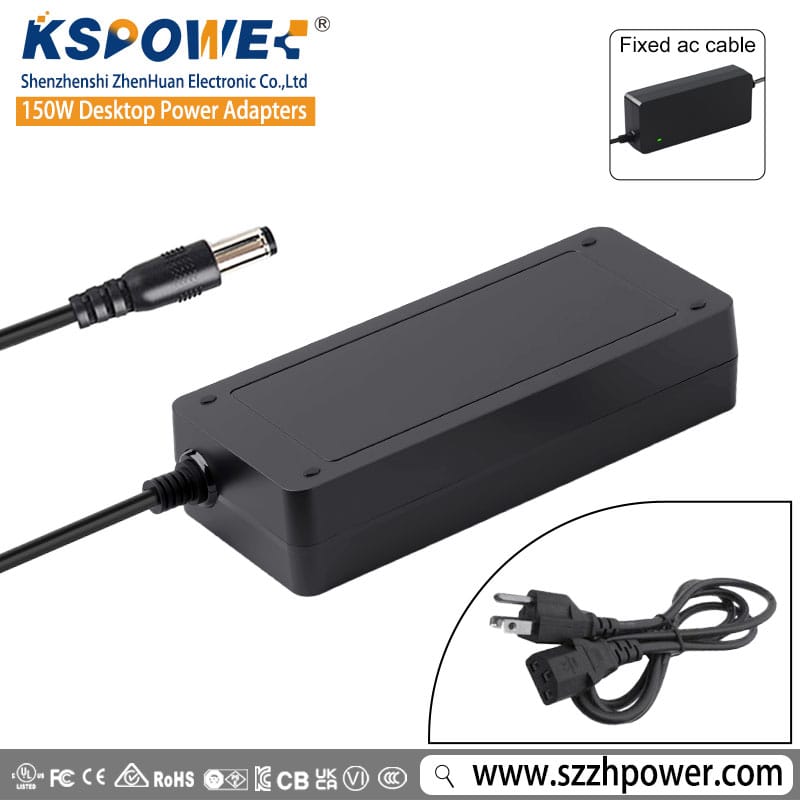

Integrated housing with permanently attached AC cable

The standard DC output cable is 1.2 meters with a 5.5×2.1mm DC plug, while cable length, connector type, housing color, labels and packaging can all be customized for OEM projects.

Built for long-term operation, this series Universal AC DC Converter combines high conversion efficiency, low standby power consumption, comprehensive protection functions and worldwide safety approvals to meet demanding industrial applications.

Product Advantages

Universal 100-240VAC Input
Active PFC ＞0.95
Output Power 120W–150W
Output Voltage 5V–36VDC
High Efficiency up to 93%
Low Standby Power Consumption
Stable Continuous Output
Low Ripple & Noise
Over Voltage Protection
Over Current Protection
Short Circuit Protection
Over Temperature Protection
IEC C6 / C8 / C14 Options
Fixed AC Cable Version Available
OEM & ODM Manufacturing

Standard Models

150W Desktop Power Adapter Specifications

Model Series	Output Voltage	Output Current	Max Power	AC Input	AC Connection
KS150DU-1201000	12V	10A	120W	100-240VAC	C6/C8/C14
KS150DU-1201250	12V	12.5A	150W	100-240VAC	C6/C8/C14
KS150DU-1500800	15V	8A	120W	100-240VAC	C6/C8/C14
KS150DU-1501000	15V	10A	150W	100-240VAC	C6/C8/C14
KS150DU-2400500	24V	5A	120W	100-240VAC	C6/C8/C14
KS150DU-2400625	24V	6.25A	150W	100-240VAC	C6/C8/C14
KS150DU-3600330	36V	3.33A	120W	100-240VAC	C6/C8/C14
KS150DU-3600416	36V	4.16A	150W	100-240VAC	C6/C8/C14
KS150DU-1201000WZ	12V	10A	120W	100-240VAC	Fixed ac cable
KS150DU-1201250WZ	12V	12.5A	150W	100-240VAC	Fixed ac cable
KS150DU-1500800WZ	15V	8A	120W	100-240VAC	Fixed ac cable
KS150DU-1501000WZ	15V	10A	150W	100-240VAC	Fixed ac cable
KS150DU-2400500WZ	24V	5A	120W	100-240VAC	Fixed ac cable
KS150DU-2400625WZ	24V	6.25A	150W	100-240VAC	Fixed ac cable
KS150DU-3600330WZ	36V	3.33A	120W	100-240VAC	Fixed ac cable
KS150DU-3600416WZ	36V	4.16A	150W	100-240VAC	Fixed ac cable

Electrical Specifications

Input Voltage: 100-240VAC
Operating Range: 90-264VAC
Frequency: 47-63Hz
Input Current: ≤2.5A
Active PFC: Typical >0.95
Standby Power: ≤0.21W
Efficiency: Up to 93.7%

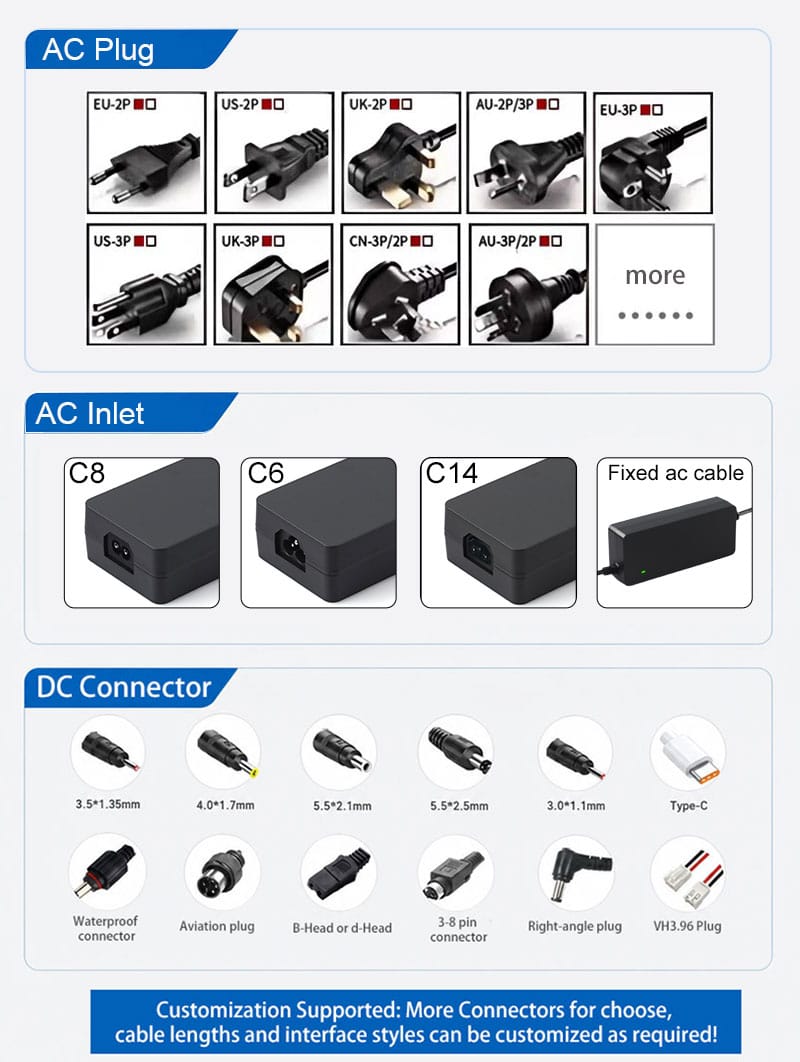

Connector & Cable Options

Flexible Connection Solutions

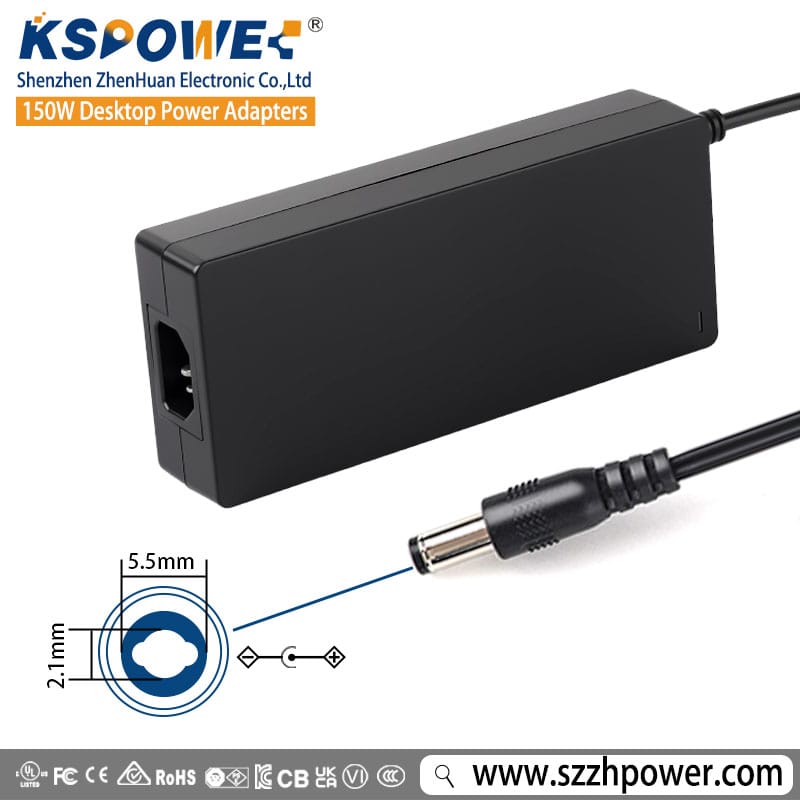

Standard DC Output

5.5×2.1mm DC Plug

Optional DC Connectors

5.5×2.5mm
6.3×3.0mm
XLR
Mini DIN
GX Aviation
Molex
JST
Anderson
Locking DC Plug
Waterproof Connector
Magnetic Connector
Customized Connector

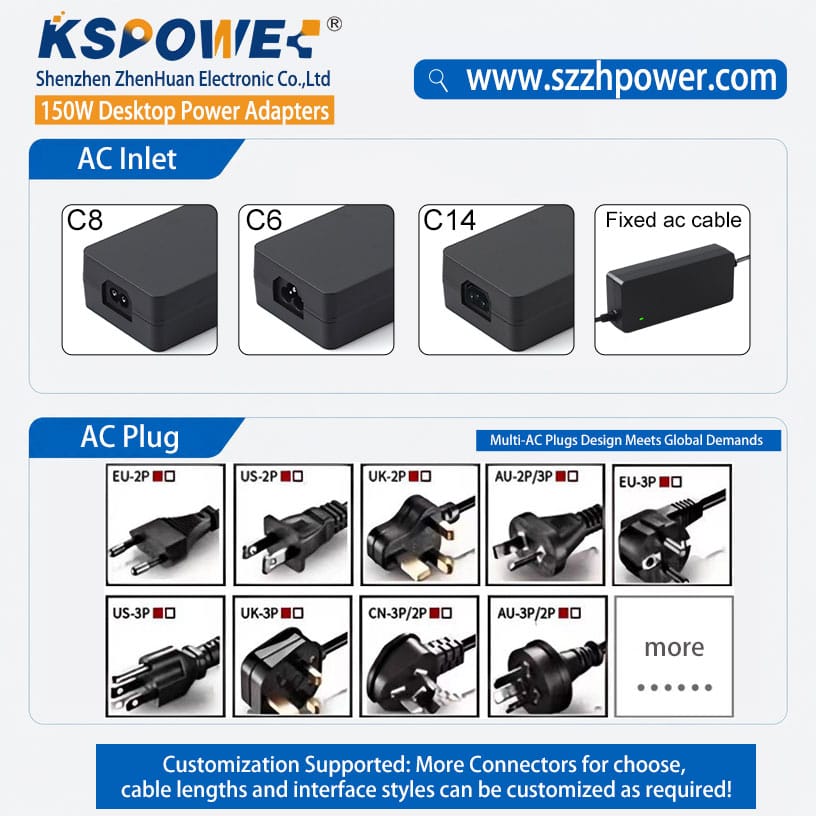

AC Input Options

Desktop Type

IEC C6
IEC C8
IEC C14

Integrated Type

Fixed 2-Pin AC Cable
Fixed 3-Pin AC Cable

Optional AC cords include:

US Plug
EU Plug
UK Plug
AU Plug
JP Plug
KR Plug

Customers may purchase adapters with or without AC power cords depending on local market requirements.

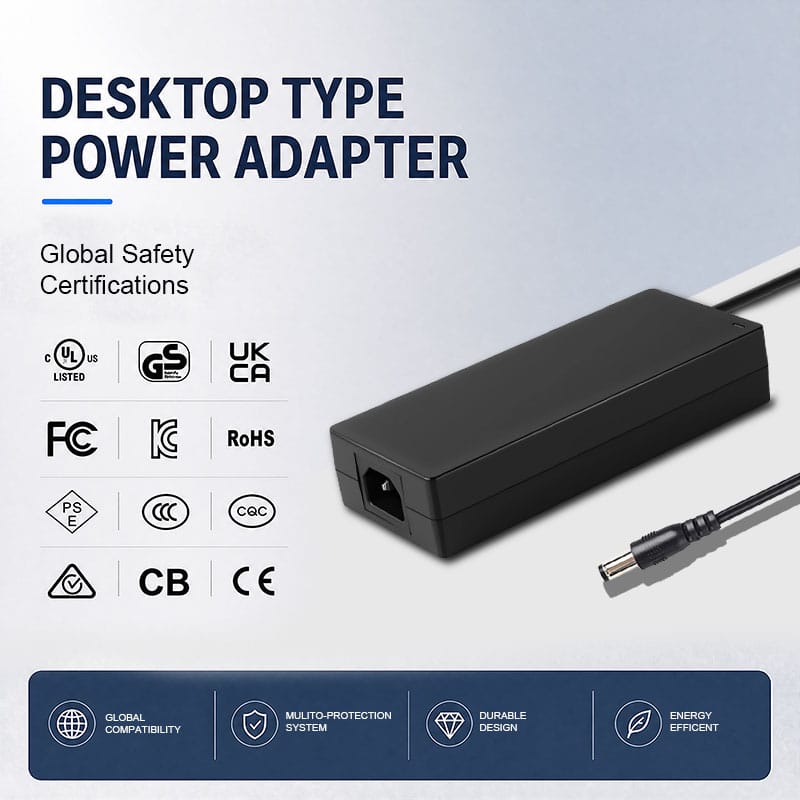

Global Certifications

Worldwide Safety Compliance

The 150W High PFC Power Supply can be manufactured to meet international safety and EMC requirements for global exports.

Available certifications include:

UL
cUL
FCC
CE
CB
UKCA
GS
PSE
KC
SAA
RCM
CCC
RoHS
REACH
DOE Level VI
ErP

Designed for exports to:

United States
Canada
European Union
United Kingdom
Australia
Japan
South Korea

The specification also supports IEC62368 safety standards together with international EMC requirements including EN55032, FCC Part 15 and IEC61000 series.

Dimensions & Applications

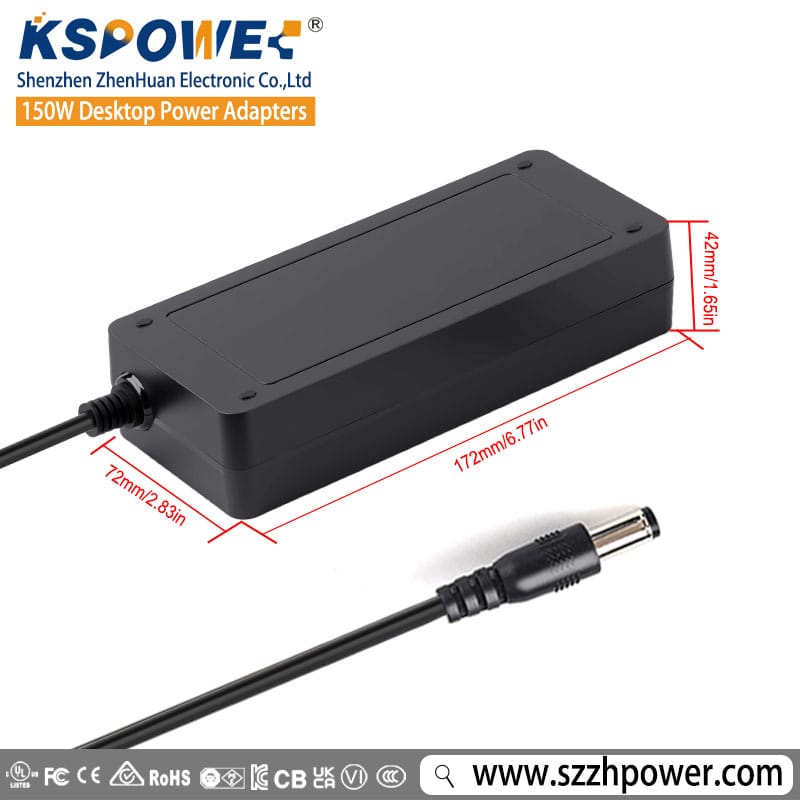

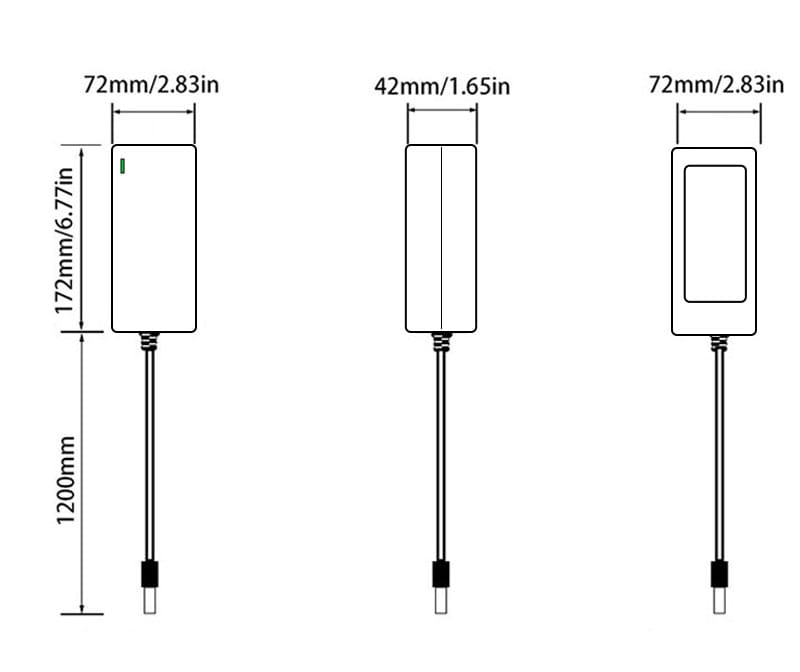

Compact Mechanical Design

Housing Size

173 × 72 × 43 mm (Desktop Housing)

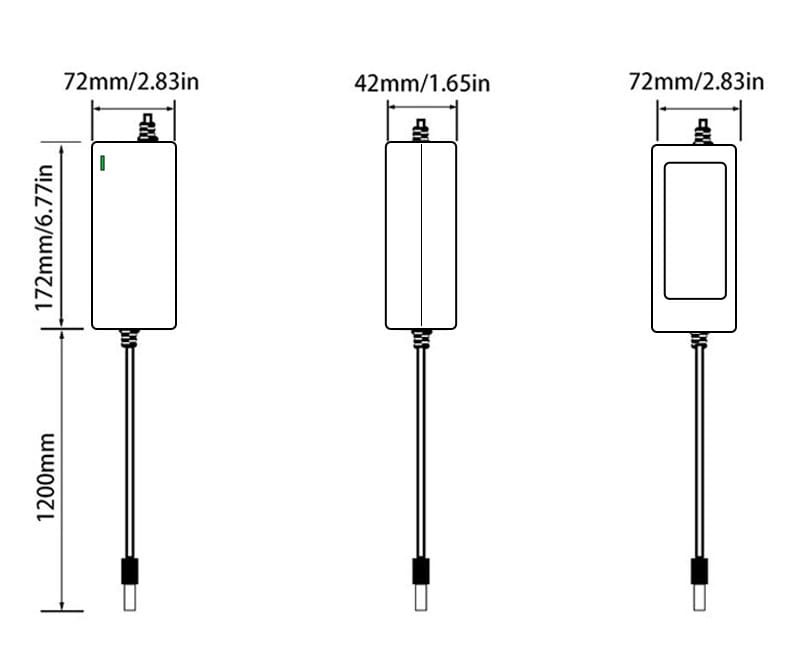

With Fixed AC Cable Mechanical Design

Typical Applications

The 150W series Industrial Desktop Adapter is widely used in:

LED Lighting Power Supply
LED Advertising Displays
Massage Chairs
Massage Guns
Beauty Equipment
Medical Monitoring Devices
Rehabilitation Equipment
Industrial Automation Controllers
CNC Control Systems
Security Monitoring Systems
Network Communication Equipment
POS Terminals
LCD Monitors
Portable Testing Instruments
Smart Home Control Systems
Audio Amplifiers
Laboratory Equipment
Commercial Printers
Robotics
Electric Lock Systems

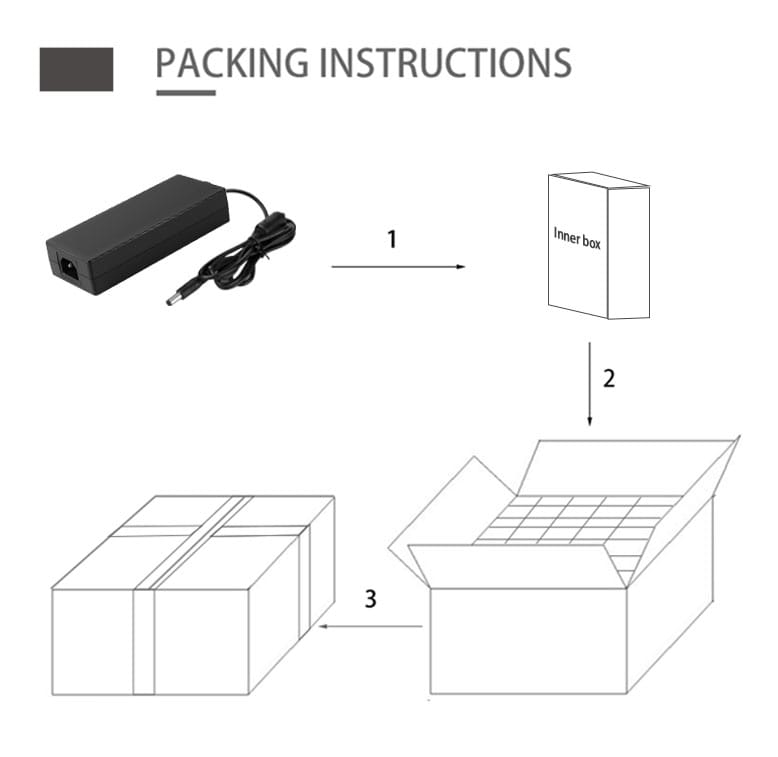

Packaging

Professional Export Packaging

Without AC Power Cord

PE Bag or Inner Brown Box
20 pcs / Carton

With 2-Pin AC Cord

High Efficiency AC Adapter + AC Cord
Inner Brown Box
20 pcs / Carton

With 3-Pin AC Cord

24V Switching Power Supply + AC Cord
Inner Brown Box
20 pcs / Carton

Carton Information

Carton Size: 49.5 × 42 × 17 cm
Standard Quantity: 20 pcs/carton

Customized color boxes, barcode labels, retail packaging and OEM carton printing are available.

Need customized packaging or country-specific AC power cords? Please contact our sales representative for professional assistance.

Q1: Why is High PFC necessary for my 150W lighting project?

A: Large commercial lighting projects often involve many drivers on a single circuit. Without High PFC (>0.95), the cumulative harmonic distortion can trip breakers or damage building wiring. Our 150W series ensures clean power consumption, satisfying utility company requirements and improving overall energy efficiency.

Q2: Can this 12V 12.5A adapter handle continuous 24/7 industrial use?

A: Yes. It is designed with industrial-grade thermal discipline and high-MTBF components. Combined with our 100% full-load burn-in test, it is rated for continuous operation in demanding IT and commercial lighting environments.

Q3: Should I choose the C14 or C6 inlet for a 150W medical workstation?

A: Both provide earth-grounding for safety. The C14 is the heavy-duty industrial standard, while the C6 is more compact. At 150W, C14 is often preferred for its more robust physical connection, but both are fully available in our Global Certified 150W Desktop Power Supply series.
